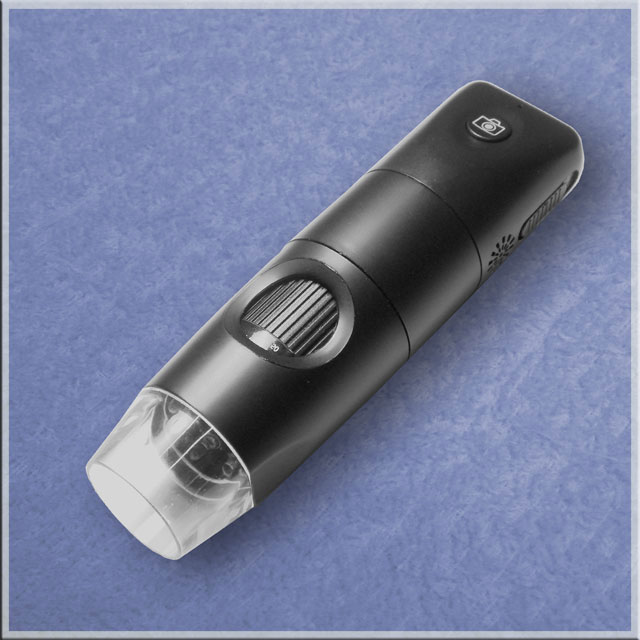

U703B is a leading 2.0M pixels and 2x speed digital microscope, it connects to a PC’s USB port and interfaces with the software application; Users can preview images while also drawing, editing and measuring the captured images.
Built-in fine-tunable lighting and interactive snap button to ensure the images can be viewed and captured properly.
The scope is ideal for a variety of other professions where close-up inspection and, most importantly, it provide perfect interaction with viewers and allow the images capture or recording for later analysis.
|
Specification
| Resolution |
True 1600(H)x1280(V)-(Non-Interpolation) |
| Video Speed |
Up to 60& 2M/15 FPS (2x MJPG Processor) |
| Interface |
Std. PC USB 2.0 |
| Mag. Ratio |
15-250x Live (Exclude the 10-300% digital zoom) |
| Optical Lens |
High-precision D.convexl lens with IR filter |
| Video Format |
360 levels Hue and Generics (Saturation/ White Balance/ Contrast/ Sharpness) |
| Illumination |
8 x LEDs (switchable and adjustable) |
| Capture |
Same quality with screen, device or extended |
| Software |
Scalarable preview window, zoom, freeze, rotate, flip and ROI; Geometry draw and Measurement |
| System Env. |
WIndows XP, Vista and 7 |
| Dimension |
35.5 mm x 40.0 mm 130.0mm |
| Accessories |
Software, Extended button, Stand Holder, Dust Cover, Clip, USB cord and Travel Bag |
|
